Micro Relay Contact Remote Switch Mini RF Button Switch 0V Switching Receiver 4CH independent 3.7V 4.2V 4.5V 5V 6V 7.4V 9V12V

Micro Relay Contact Remote Switch Mini RF Button Switch 0V Switching Receiver 4CH independent 3.7V 4.2V 4.5V 5V 6V 7.4V 9V12V
  • Продавецwww.hiddenrock.info
  • Список ценUS $20.99piece
  • Продажная ценаUS $20.99piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,1 (642)

Oписание продукта

Application:
Our products are widely used in remote control switch, remote control of the pump on and off, remote control machine on and off, remote control motor positive and negative, remote control socket, remote control LED, remote control audio, remote control electric door, remote control garage door, remote retractable door,  remote control curtains, alarm host, alarm,remote control motorcycle,remote control electric car,remote control MP3,remote control lights, remote control cars, security and other civil and industrial supporting remote areas, has the advantages of simple matching, safe and reliable for the modification of ancillary products.

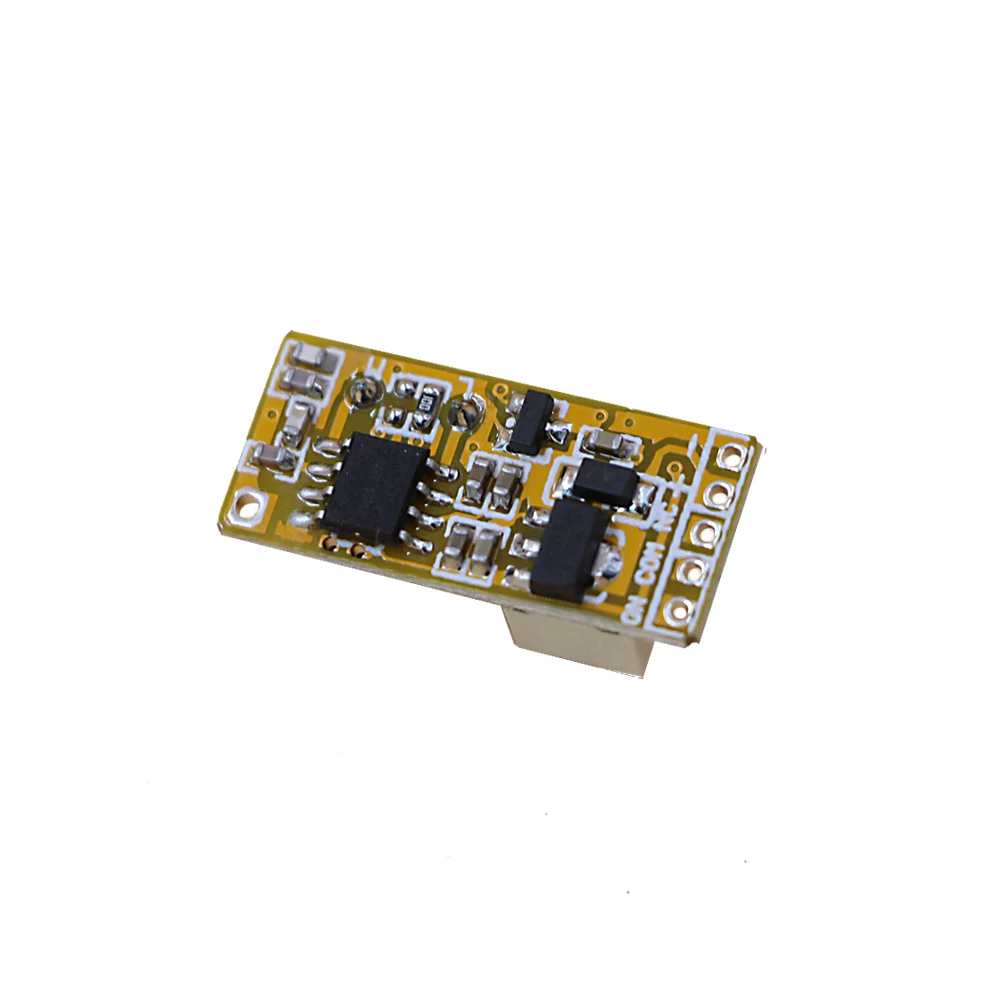

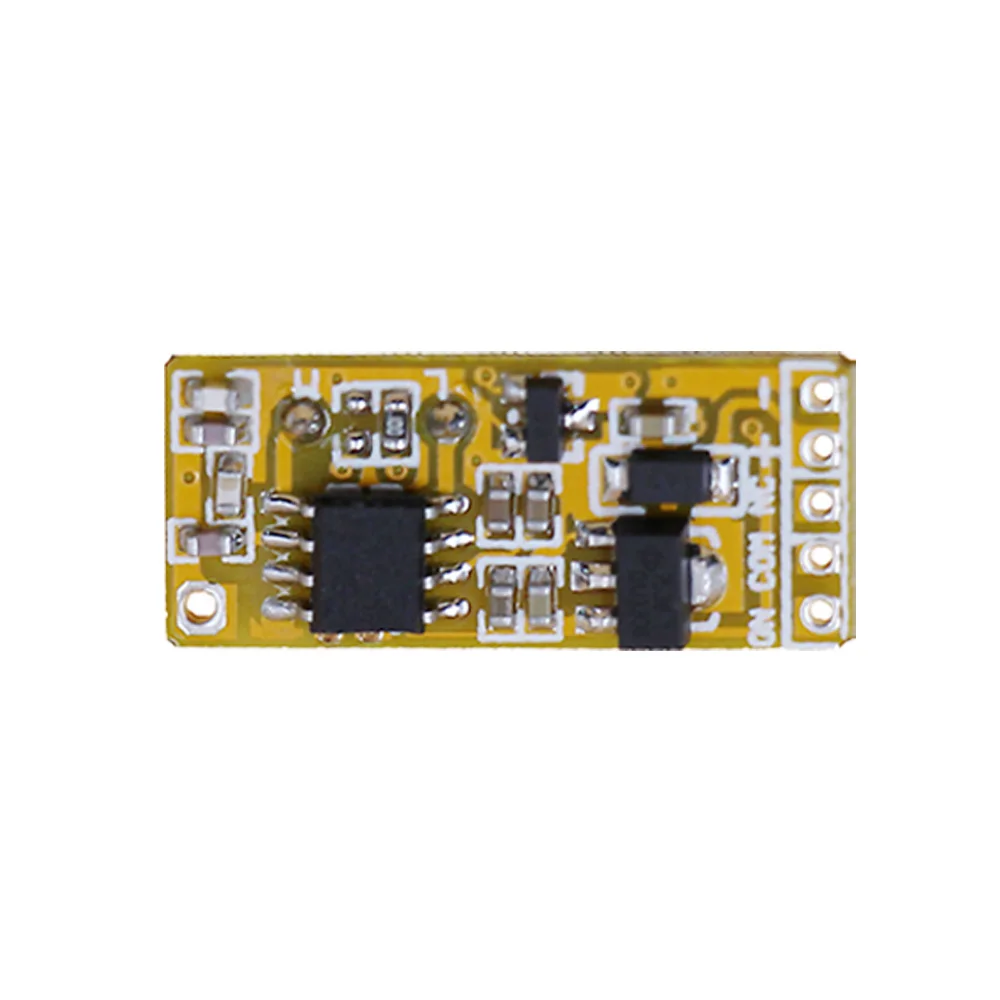

The receiver input Power Output Power ,Wide range working voltage, Mini size ,Learning Dot
on the receiver to matching the transmitter, the low voltage relay is inward,
the Super-heterodyne receiver module receiving sensitivity is high ,
anti-interference performance is good . so with the comnon transmitter will be much long range

Specification:
1. Working Voltage: DC3.5V-DC12V
2. Max Load: 1A (have better load less than 700ma)
3. Working Frequency: 315/433.92MHz Optional by leave us massage.
Working Current / Quiescent current :5- 7ma/H
4. Frequency Deviation: more or less than 0.2MHz
5. Working temperature: -20\\\'C- +80\\\'C
6. Receiving Sensitivity: -114dBm

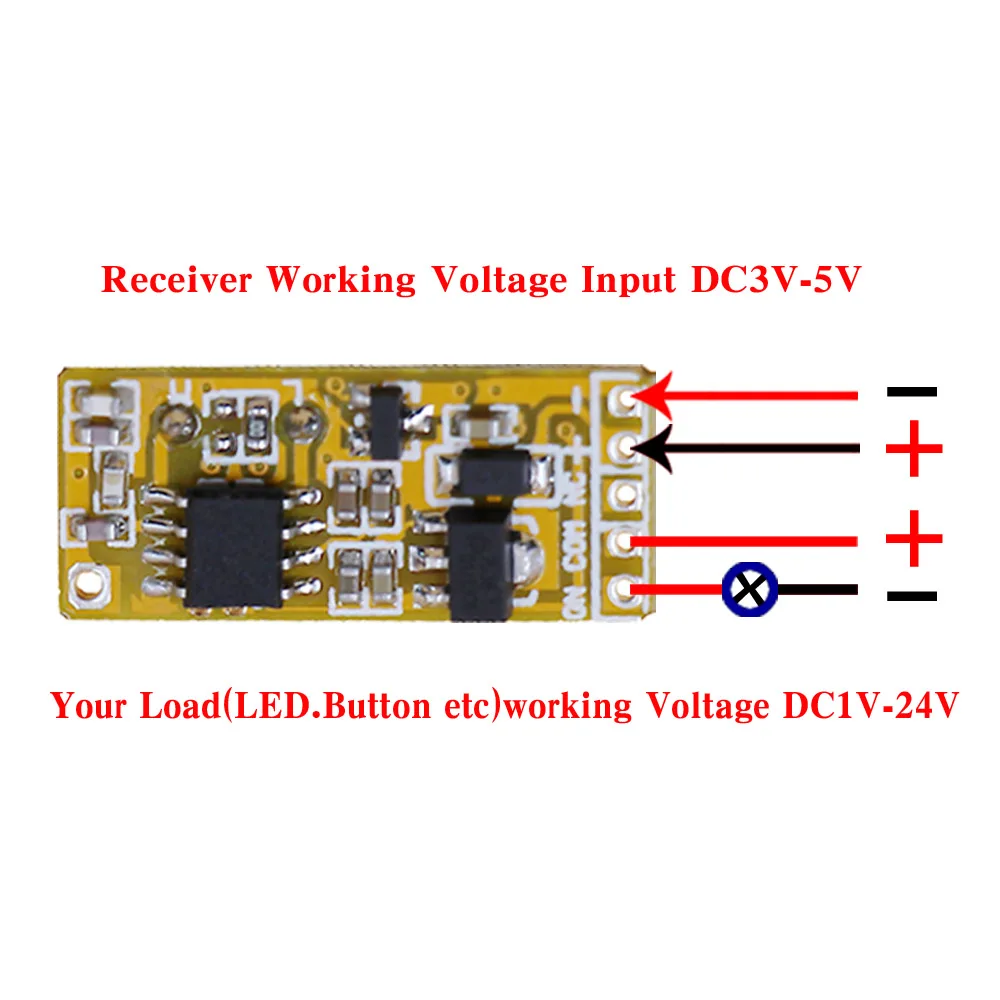

7. Output State: Input DC3.5V-DC12V Output DC3.5v-DC12V
8. Modulation Mode: amplitude modulation (AM)
9: Size: 24mm×11mm×8mm (L×W×H) Mini Size

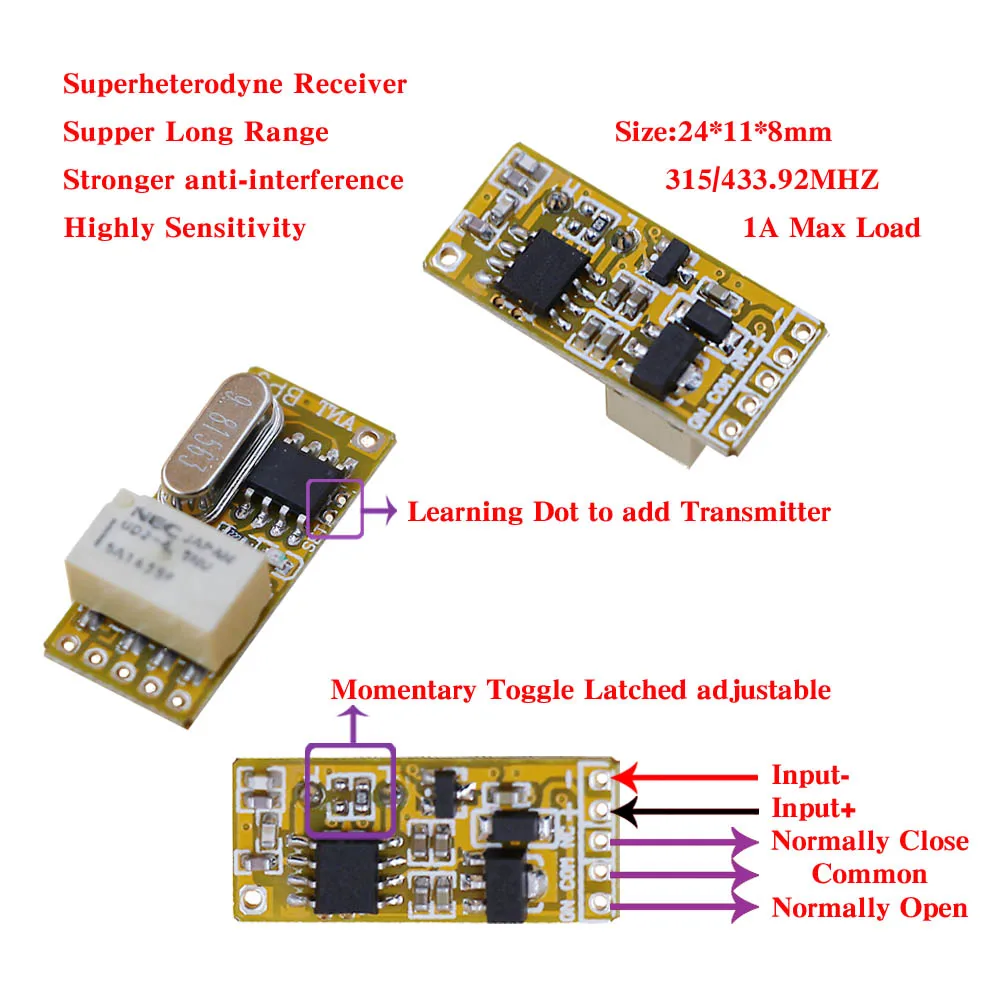

10.Output state: Momentary Toggle Latched adjustable

Normally Open Port (NO)      Common Port (COM)    Normally Close Port (NC)

1)Momentary-------------Press the button is ON .Release your finger on the button is OFF
2)Toggle--------------- Press one button for one time is ON .press the same button again is OFF
3)Latched------------------Press transmitter button A, the receiver relay A is ON, Press Button B, the Receiver is OFF
Notice:
It is micro receiver, before you purchase, please measure your load
exact working voltage and current

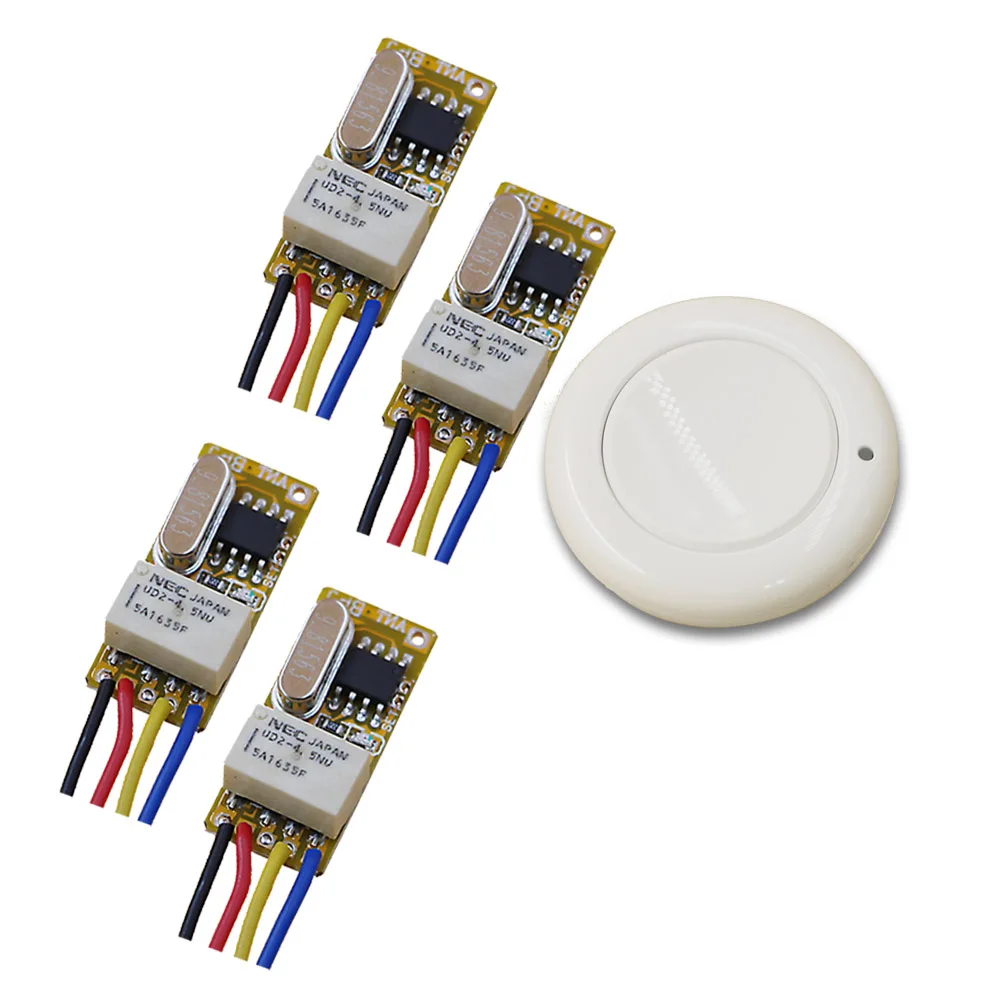

package include:

1* Transmitter (battery not include)

4* Receiver
