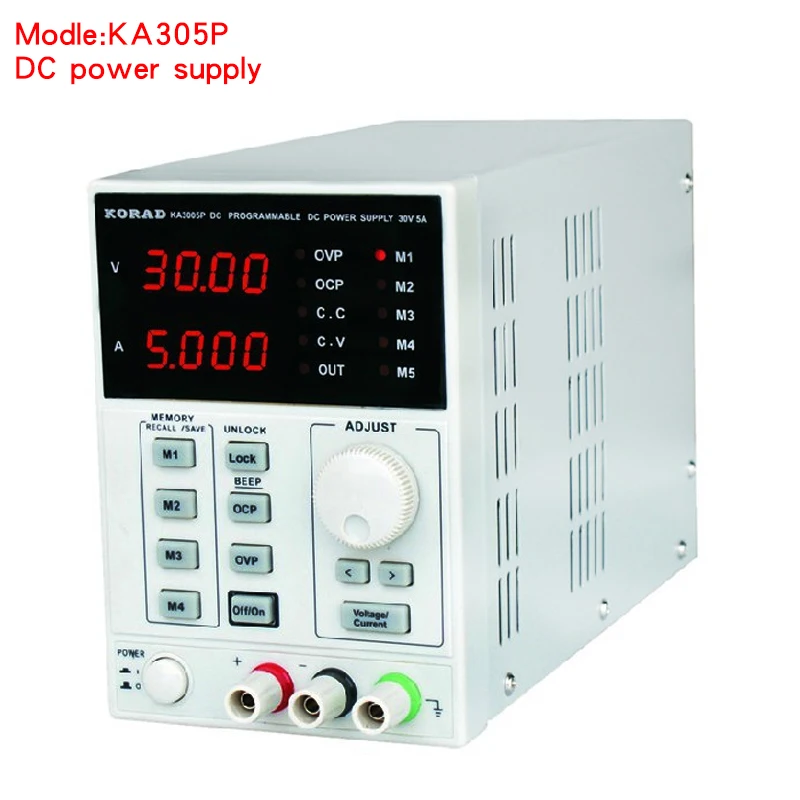

KA3005P Programmable Precision Adjustable 30V, 5A DC Linear Power Supply Digital Regulated Lab Grade (with USB and software)



Programmable power
10mV/1mA high accuracy and resolution
Low noise and ripple
CV / CC given voltage and constant current mode
The highly reliable OCP, OVP, any set protection
Built-in set of parameters stored
Output switch control
Power and memory function
Keypad lock to prevent misuse
USB data storage, and automatic control functions
Optional quota RS232, USB interface
Easily replace traditional digital power

Precisely generate the required voltages and currents
The KA series power supply to provide a resolution from a wide range of 30V-60V output voltage 10mV and 10ma
Professional power supply design with intuitive operability
Simple and intuitive operation, fast and accurate selection of voltage and current can be realized
5 user-programmable preset settings
Just press the button to recall and save area a key to bring up the user to store the data and save user settings
To prevent damage to the load
Numerical overvoltage and overcurrent protection, and can be set to prevent the voltage regulator exceeds the threshold. Locking panel buttons, keyboard lock function to prevent undesirable results in the key test engineering.

Applications:
Research and development, quality control and testing, automated testing of the production line, school laboratories, and maintenance.

Technical parameters:
Model: KA3005P
Operating Voltage: 220V
Voltage / Current Range: 0-30V / 0-5A
Load Regulation
Voltage: ≤ 0.01% +2 mV / Current: ≤ 0.1% +5 mA
Linear Regulator
Voltage: ≤ 0.01% +3 mV / Current: ≤ 0.1% +3 mA
Set the Resolution
Voltage: 10mV / Current: 1mA
Setting accuracy (25  + - 5 )
Voltage: ≤ 0.5% +20 mV / Current: ≤ 0.5% +10 mA
Ripple (20hz-20M)
Voltage: ≤ 2mVrms / Current: ≤ 5mArms
Temperature Coefficient
Voltage: ≤ 100ppm +10 mV / Current: ≤ 100ppm +5 mA
Readback Resolution
Voltage: 10mV / Current: 1mA
Readback Temperature Coefficient
Voltage: ≤ 100ppm +10 mv / Current: ≤ 100ppm +5 mA
Reaction Time (10% of the rated load)
Voltage: ≤ 100mS / Current: ≤ 100mS

Operating Environment
Indoor use;
Altitude≤ 2000m;
0 -40 ambient temperature;
≤ 80% relative humidity.
Interface
Optional interfaces: RS232, USB
Fitting

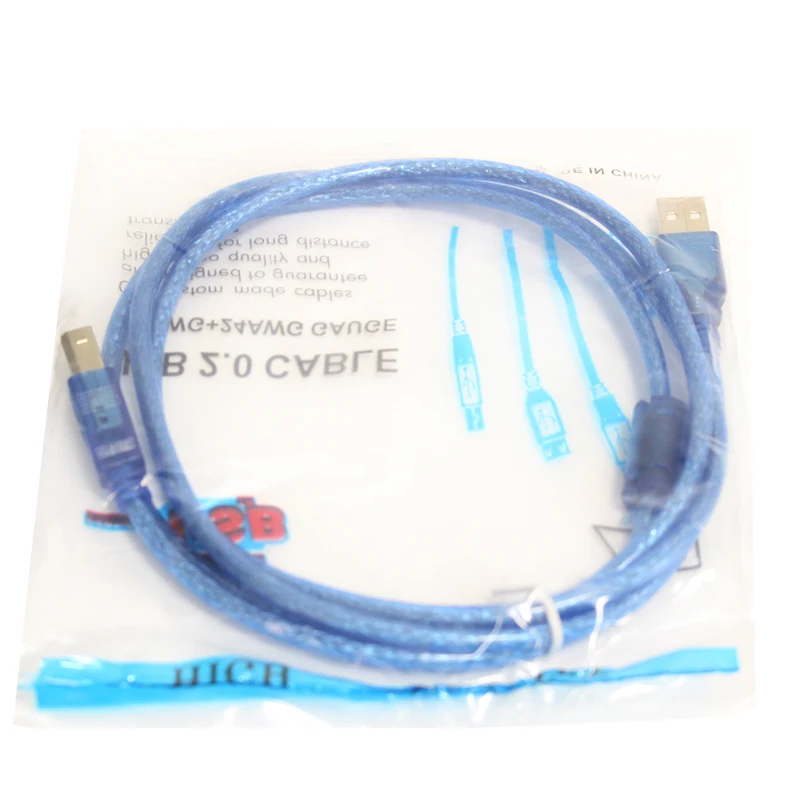

Manual, power cord (1.2M), USB Cable (1.2M)
Weight and Dimensions
4.3 kg / 110 (W) X156 (H) X 260 (D)
Storage Environment
Ambient Temperature -10  - 70
Relative Humidity ≤ 70%


Caution:
Please choose the right input voltage on the back of DC power supply.
Incorrect choosing input voltage will damage the machine.


Package Lists:
1 * DC Power Supply
1 * Power Cord
1 * Instruction Book



Noted: The buyer in Brazil / Argentina, Must be provided the CNPJ (CPF) /VAT No. when order to us; For Russian

buyers, should be offer The Full Name of consignee.
