Top DC3V 3.7V 4.5V 5V 6V 7.4V 9V 12V Small Size Remote Control Switch No Sound Receiver+4Transmitter with 2 buttons 315/433mhz

Top DC3V 3.7V 4.5V 5V 6V 7.4V 9V 12V Small Size Remote Control Switch No Sound Receiver+4Transmitter with 2 buttons 315/433mhz
  • Продавецwww.hiddenrock.info
  • Список ценUS $20.57piece
  • Продажная ценаUS $20.57piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (136)

Oписание продукта

Working Voltage: DC3.5V-DC12V
Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V
it can work with DC Power / Rechargeable lithium battery / Rechargeable
Max Load: 1A (have better Load less than 700ma)
Quiescent Current: 5ma
Relay Working Current: 20-30ma
Size: 25*11*8mm

Working Mode: Momentary Toggle Latched adjustable (315Mhz)
Momentary Latched adjustable (433Mhz)

Encoding Type: Learning Dot to add Transmitter

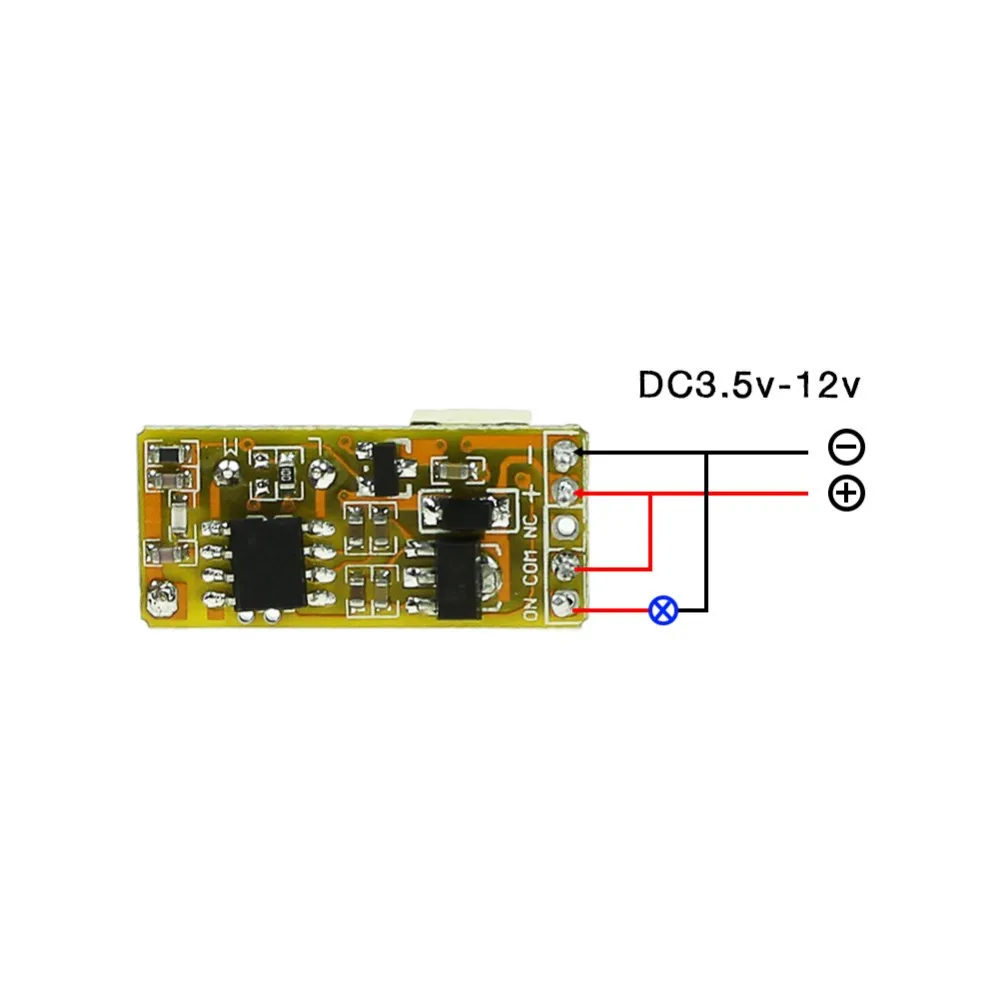

Normally Open Port (NO) Common Port (COM) Normally Close Port (NC)
Input DC3.5V-DC12V Output 0V Switching Value

Momentary------------press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control

Toggle---------------press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control

Latched------------------press one button is working/ON ,press another button is stop/OFF . ( one channel switchneed 2 buttons remote control )

Package Include:

4 * Receiver(without cover)
1 * Transmitter(with battery)
