KA3005P Programmable DC Power Supply 30V 5A Adjustable Digital Laboratory Power Supply 10mV/1mA High Accuracy Phone Repair Kit

KA3005P Programmable DC Power Supply 30V 5A Adjustable Digital Laboratory Power Supply 10mV/1mA High Accuracy Phone Repair Kit
  • Продавецwww.hiddenrock.info
  • Список ценUS $61.65piece
  • Продажная ценаUS $61.65piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (699)

Oписание продукта

dianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao
dianxiaobaodianxiaobaodianxiaobaodianxiaobao

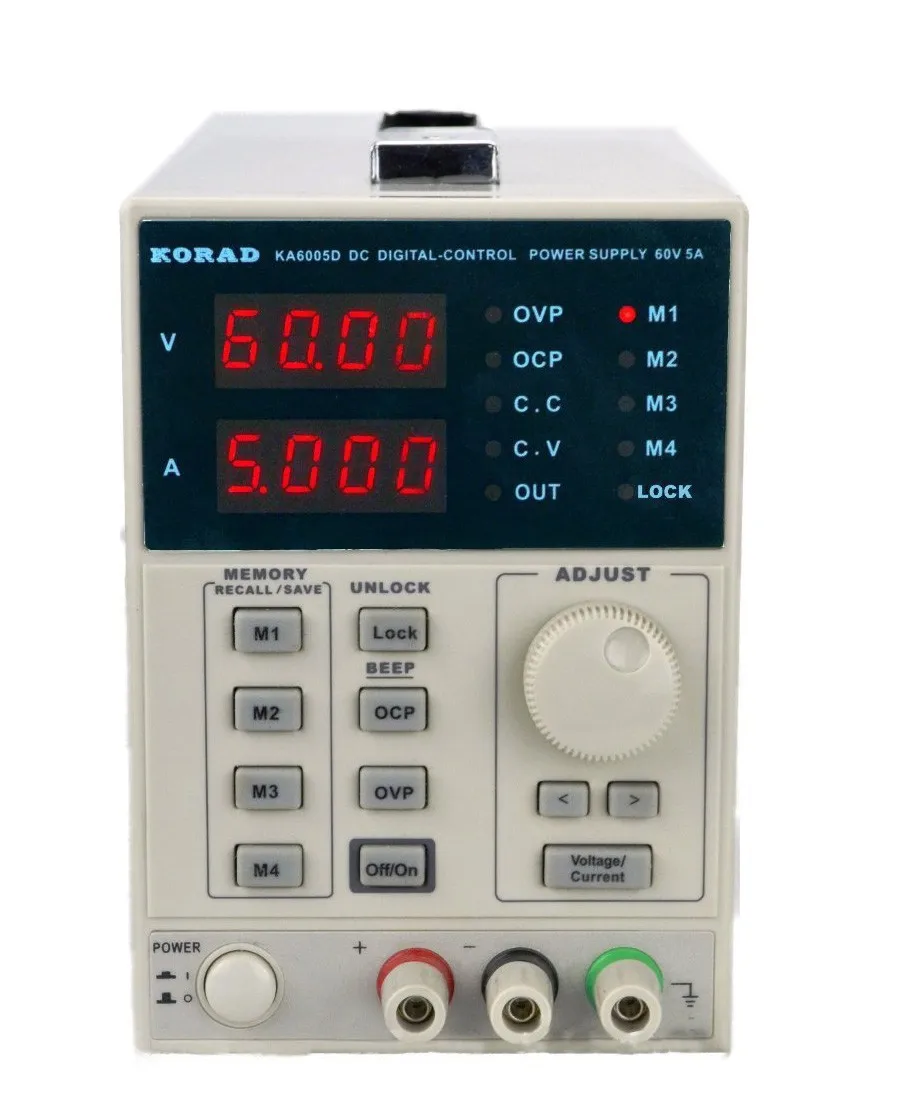

KORAD KA6005D High Precision The Lab programmable Adjustable Digital Regulated power supply DC Power Supply 60V/5A mA 4Ps



This is packed with features and at a cost that can\\\\\\\'t be beat!! It has an easy to read 4 digit LED is used to display the voltage and current values and 4 programmable storage setting.


This is a heavy duty single-channel, constant-voltage and constant-current Linear power supply with low ripple and noise, high reliability and high accuracy.

The voltage and current are continuously adjustable.

It is designed for use in labs, colleges and in production.

Features:

Compact Design
Dual 4 Digit LED Displays
Digital Controls
Output switch control
4 sets of parameters can be stored inside for fast recall
Keyboard Lock to prevent accidental changing of set parameters
Circuit protection for over load, short circuit and over temperature.
Automatic switching between mA and A display
Quiet variable speed fan

Operating Conditions:

Input voltage:220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F (0-40 ºC)
Operating humidity: < 80%RH
Storage temperature: 32-158 F (0-70 ºC)
Storage humidity: < 70%RH


Stable Voltage:

Output Voltage Range: 0-60V Continuously adjustable
Setup Resolution: 10 mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10 mV


Stable Current:

Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3 mA
Ripple: < 3mARMS
Read back Accuracy: 1 mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5 mA
